⚡ Connect Fast, Work Harder, Stay Ahead.

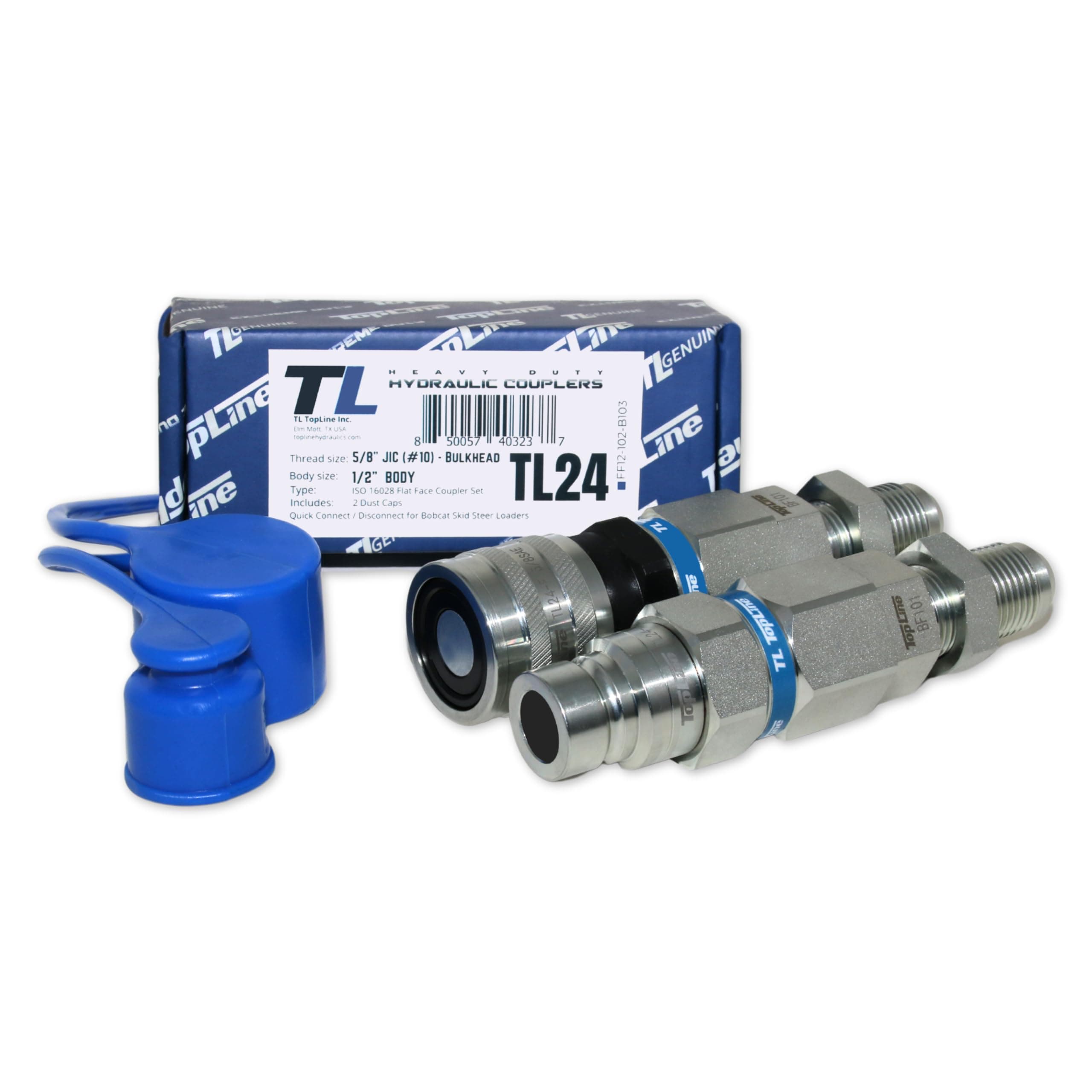

The TL24 Hydraulic Quick Connect Coupler features a 5/8" JIC thread and 1/2" body size, engineered for Bobcat skid steer loaders and similar heavy machinery. Rated for over 5076 PSI and compliant with ISO 16028 standards, its zinc-plated steel construction ensures durability and corrosion resistance. The flat face design reduces hydraulic fluid loss, while the push-connect locking sleeve and knurled grip enable fast, secure, and leak-free connections—even in tough field conditions. Dust caps are being upgraded to blue in 2025 for easier identification and continued system protection.
Size | 1/2" Body 5/8" JIC Thread (#10 JIC) Bulkhead |
Material | Steel |
Brand | TL Topline |
Color | 5/8" JIC Thread Size |
Item dimensions L x W x H | 4 x 2 x 4 inches |
Connector Type | Quick Connect |
Thread Size | 0.5 inch |
Exterior Finish | Zinc |
Thread Type | JIC |
Item Weight | 2.1 Pounds |
Number of Pieces | 2 |
Manufacturer | TopLine Equipment Inc. |
UPC | 617407884685 |
Part Number | FF-1258-3B-8-DC |
Item Weight | 2.1 pounds |
Product Dimensions | 4 x 2 x 4 inches |
Item model number | TL24 |
Is Discontinued By Manufacturer | No |
Item Package Quantity | 1 |
Maximum Pressure | 5076 Pound per Square Inch |
Certification | ISO |
Batteries Included? | No |
Batteries Required? | No |
K**S
Great parts
Working good
K**E
Quality built
I bought these to replace the rusted ones on my Case 75XT skid steer. I was nervous that these wouldn't fit, but they were a direct replacement like the description said. They feel like quality units with great machining and tight tolerances. Time will tell how long they last, but my initial impressions are high. I installed them today and used my grapple for an hour or so, and they are bone dry - no leaks - and they are easy to connect and unhook.
A**1
Good alternative to overpriced local sources.
They were much cheaper than any other source and seemed to be pretty good quality. The rubber caps were better than the ones for sale in the farm store for twice the price.
K**.
Great product and support!
I ordered these in Feb of 2024, and didn't get around to installing them until May. Every hydraulic attachment I use was leaking at the quick connects. I replaced these and after a couple emails back and forth with the company, they are working great! I had an O-ring that busted which was likely my fault, and they sent new ones out right away. I ran my brush hog today and everything is dry! Would not hesistate to buy again from these guys.
J**N
Flat nose fitting
Just what I ordered. Great price compared to local TSC stores wanting $75 dollars for the male half
R**G
Starting to leak
I’ve had these installed for roughly two month and use my grapple bucket maybe 6 times. Today one of the seals started going out and it began pouring hydraulic fluid from the quick connect. Unfortunately I have to replace them and I’m in the middle of a huge project so it’s a major setback. Not worth it. I should have just got a higher quality in the beginning
J**N
Good quality and a great price
Not a lot of time using them but out of the box and on the machine they are working great. Connect tight like they should
D**N
Amazing couplers
I build and fabricate a bunch of my own attachments for my skid steer and I Just ordered my third set of these and with good reason. Can't beat the quality for the price. Solid couplers, don't leak and come with caps. 1 of them is $60 at NAPA or tractor supply with out caps so these are a steal and a half. 5 star
