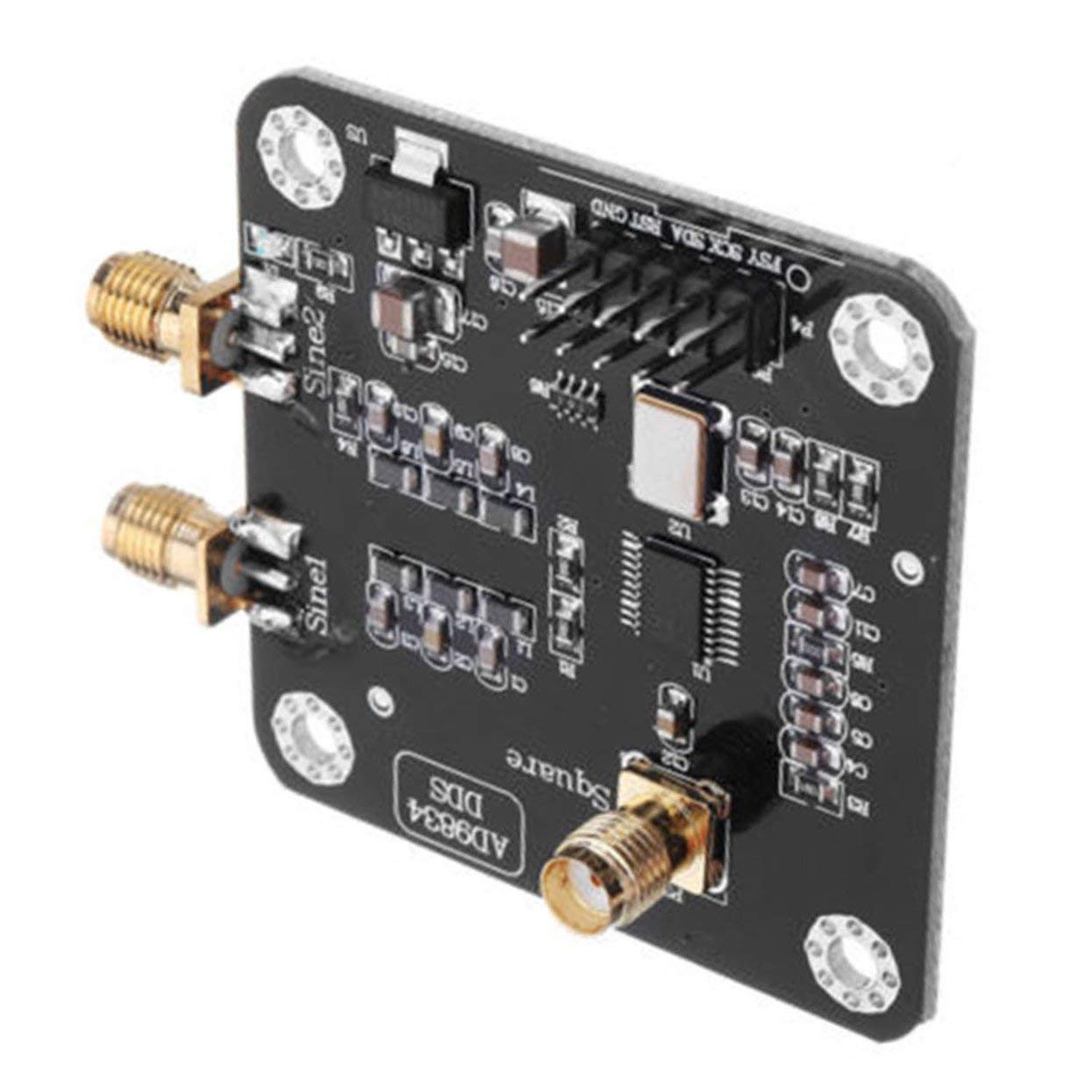

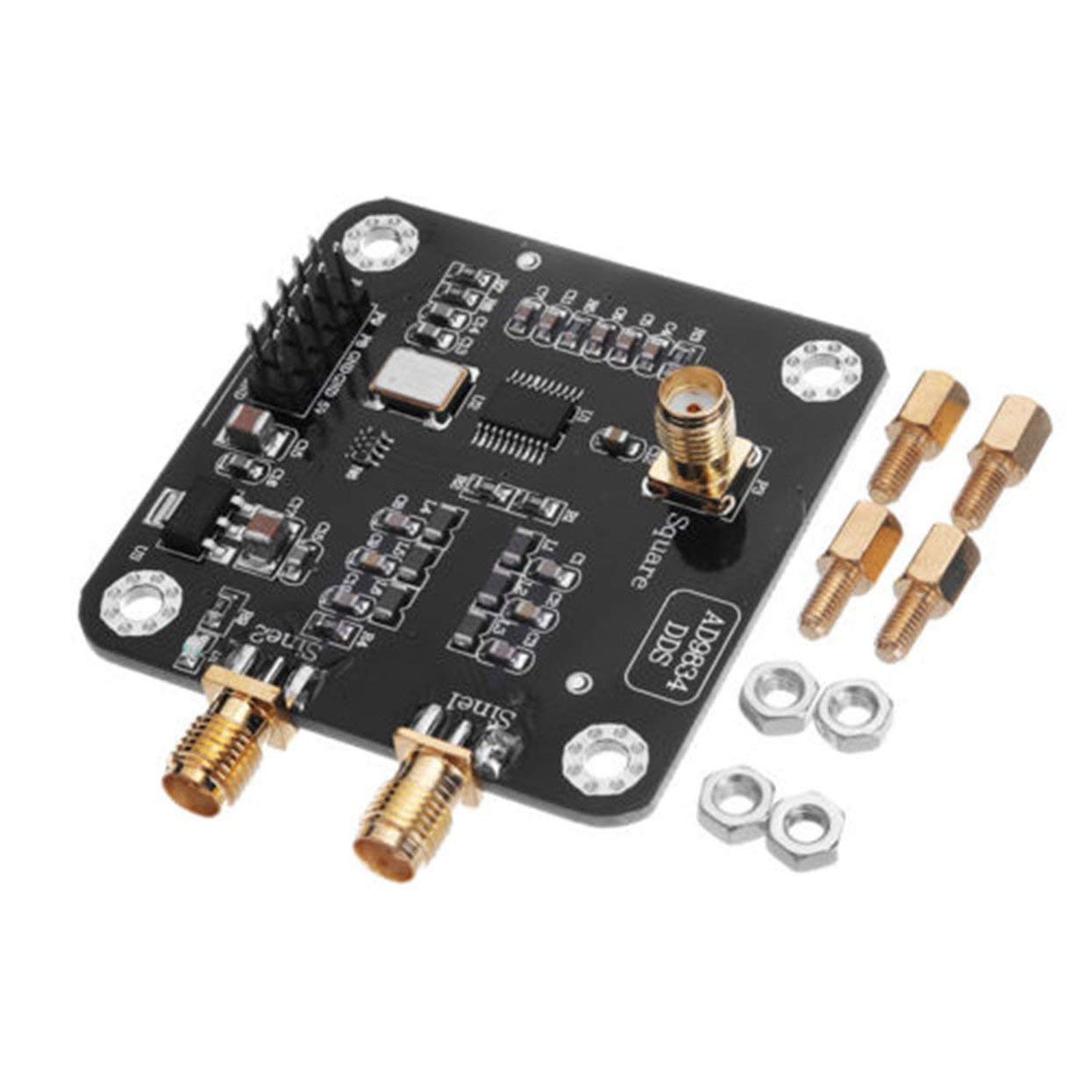

AD9834 DC 5V DDS Signal Generator Module Board Sine/Triangle/Square Wave Generator Portable Signal Source
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5Thumbnail 6

AD9834 DC 5V DDS Signal Generator Module Board Sine/Triangle/Square Wave Generator Portable Signal Source

Product ID: 183165929
Secure Transaction
Frequently Bought Together

Description

  • ❀ Produce high performance sine and triangular outputs.
  • ❀ Also integrates its on-chip comparator, support the generation of square wave for clock generation.
  • ❀ When the supply voltage is 3V, the power consumption of only 20mW, very suitable for power sensitive applications.
  • ❀ AD9834 provides a phase modulation and frequency modulation function. Frequency register 28bit; clock rate of 75MHz, can achieve a resolution of 0.28 Hz.
  • ❀ Similarly, when the clock rate is 1 MHz, AD9834 can achieve a resolution of 0.004Hz.
  • ›See more product details

Features:Produce high performance sine and triangular outputs. Also integrates its on-chip comparator, support the generation of square wave for clock generation. When the supply voltage is 3V, the power consumption of only 20mW, very suitable for power sensitive applications.AD9834 provides a phase modulation and frequency modulation function. Frequency register 28bit; clock rate of 75MHz, can achieve a resolution of 0.28 Hz. Similarly, when the clock rate is 1 MHz, AD9834 can achieve a resolution of 0.004Hz. Affect the frequency and phase modulation method is through the serial interface to load the register, then register by software or FSELECT / PSELECT pin switches Device.AD9834 via a three-wire serial interface to write data. The serial interface that operates at clock rates up to 40MHz and is compatible with digital signal processing and micro-controller standards. Specifications:Narrow-band SFDR: >72dBPower Supply: +5VOutput Frequency: Up to 37.5MHzOutput Wave: Sine wave output/triangle wave outputComparator: On-chip comparatorsInterface: Three-wire Serial Peripheral InterfaceExtended Temperature Range: -40℃ to +105℃Power Saving Options: YesPower Consumption: 20mW (when 3V)Material: electronic componentsSize: 10*6*3cmColor: blackPackage included:1 x Signal Generator Notes:1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks!
