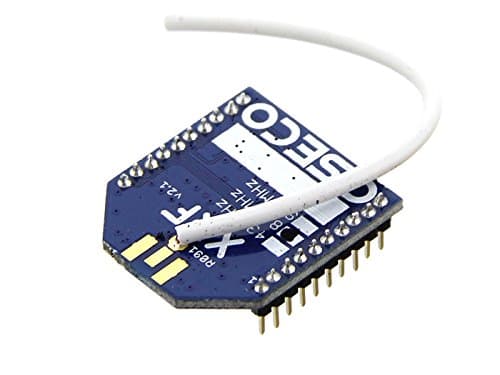

Our extremely popular easy to use RF serial data module with great range and XBee style pin layout. The XRF has now had over an equivalent of 40 million hours of run time in the field, quite staggering for something so affordable. Provides an out-of-the-box wireless RF serial connection without any need for programming or end-user configuration, when we say plug them in and go, we mean it, they transfer serial data transparently without requiring any initial config. Operates in the ISM bands (868 to 915 MHz) and that means it has a greater range than Bluetooth, WiFi or Zigbee sytle 2.4 GHz units that sport the same footprint (those things sold by Digi). That means it goes through more walls and reaches further. We have had reports of customers sending data over more than 3 KM using the standard supplied whip antennas outside. You should expect 500m + on the standard antenna. Comes pre-loaded with firmware which enables the XRF to interwork with all other Ciseco RF modules, without any programming or configuration. You provide data one end and it appears on the other. All data packetisation, data checking, etc. is all done for you. Makes use of Texas Instruments’ CC1110, a low-power System-on-Chip, which sports a micro-controller unit (MCU), memory, a sub-1GHz transceiver, and an encryption engine. Ciseco provide a series personalities that can be used to specialise an XRF so it can become a dedicated sensor or actuator that communicates using Ciseco’s LLAP, a protocol that is as easy to understand as a text message or sending a tweet. We have a range of sensors, actuators, support boards, Arduino shields, and Raspberry Pi add-on boards that when fitted with an XRF become wireless nodes in a Ciseco powered internet of things. 2mm pin spacing the same as the XBee Made in the UK
