20T Hydraulic Pipe Bender Hydraulic Bus Bar Bender Pipe Bender 150 mm Hydraulic Bender

Description

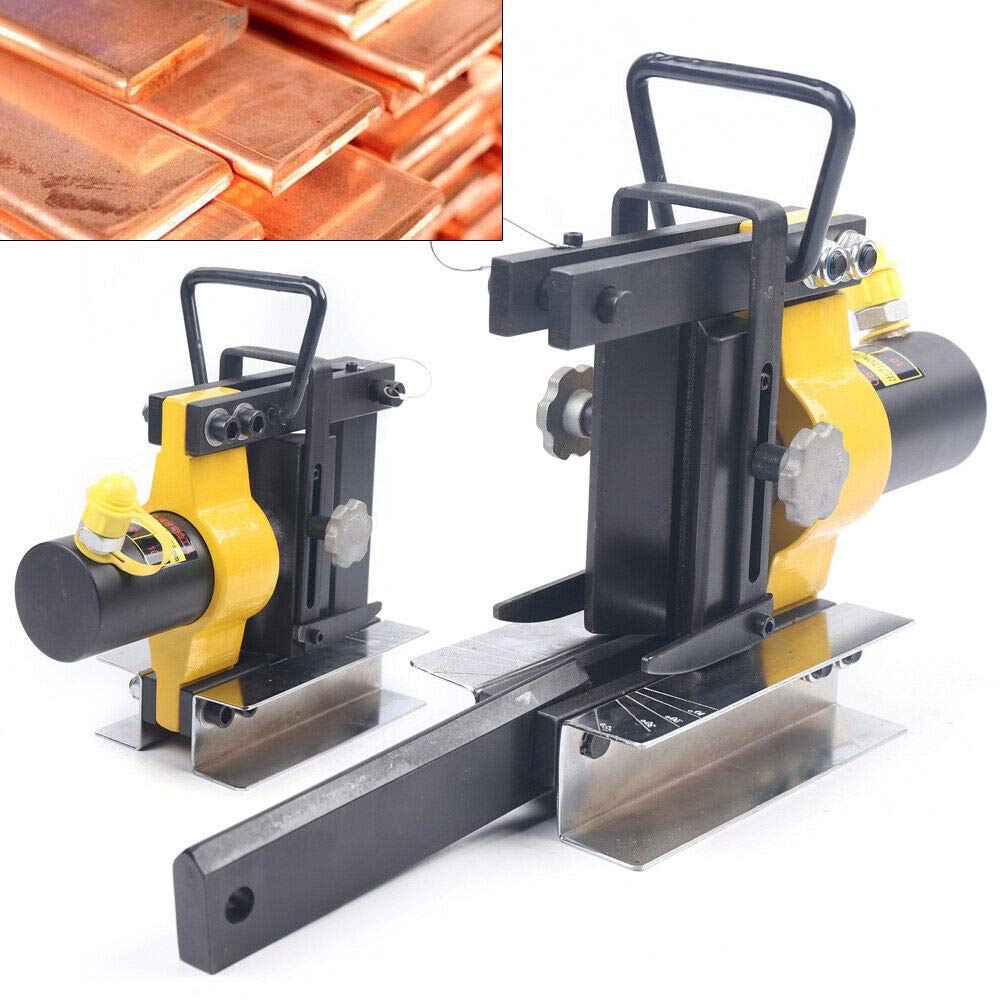

Product description The CB-150D hydraulic bus bar bender is suitable for bending metal materials, including copper and aluminium rows, iron plates, etc. Scale display for reading the angle. The plate width positioning device prevents the bent bus bar from losing its shape. This bending device is suitable for wiring switch boxes and panel without automatic pollution or noise. Separate design for easy carrying. Specifications Device type: hydraulic bus bar bender. Tonnage: 20 tonnes (44100 lb). Maximum width: 150 mm. Maximum thickness: 10 mm. Gross weight: 18.35 kg Package dimensions (L x W x H): 35 x 18 x 28.4 cm. Features: Scale display on the device for angle measurement Takes on aircraft bearings, does not hurt the bus bar For bending metal materials with a width of 150 mm and a thickness of 10 mm. Separate design, easy to carry. Heavy duty with large arc dimensions. Instructions 1. Connect the quick connector to the hydraulic pump (pump not included in this list) and screw it into place. 2. Place your product on the bending machine. 3. Close the pump oil return switch and pull the handle to allow the angle scale to approach the product. 4. Release the oil return switch. The angle scale is automatically reset. Never set without product in the machine. Package contents: 1 x hydraulic bus bar bender.
