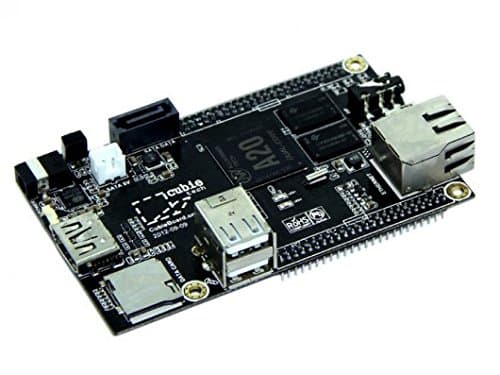

An upgrade of cubieboard, cubieboard A20 is coming. Compared with cubieboard, the cubieboard A20 uses an Allwinner A20 processor which has a dual core CPU and twice GPU performance. On the software side, cubieboard2 supports both android 4.2 Jelly Bean, Ubuntu 12.04 and other Linux distributions. Since cubieboard2 and cubieboard share the same PCB, all the accessories work with cubieboard can also fit cubieboard2. Specifications: CPU: ARM® Cortex™-A7 Dual-Core GPU: ARM® Mali400MP2,Complies with OpenGL ES 2.0/1.1 Memory: 1GB DDR3 @960M Video output: HDMI 1080p Output Network: 10/100M Ethernet Storage: 4GB internal NAND flash, up to 64GB on uSD slot, up to 2T on 2.5 SATA disk IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1 IR Extended interfaces: 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP Supports systems: Running Android, Ubuntu and other Linux distributions Power supply：5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug
