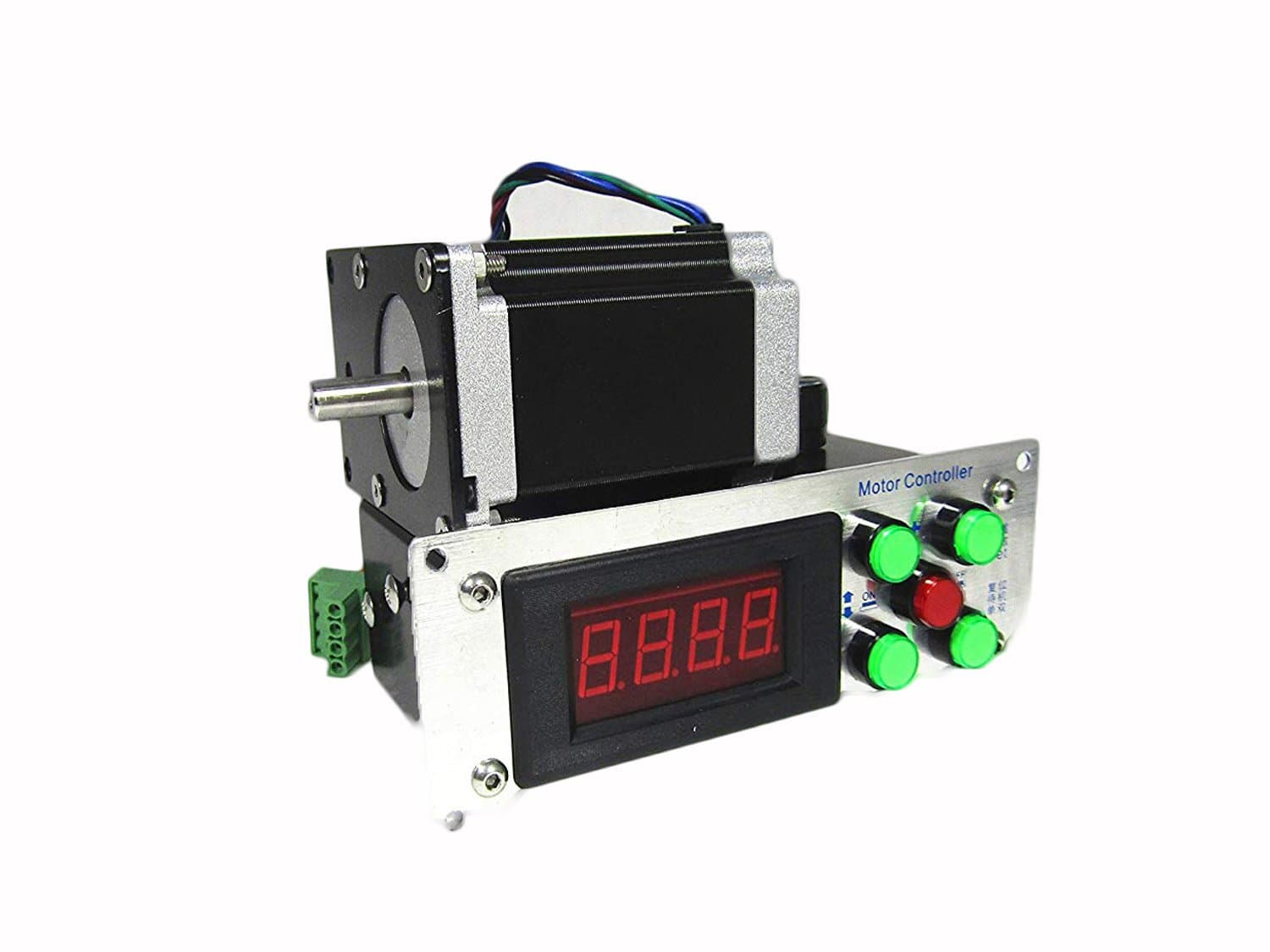

JIAWANSHUN YT-A Precision Digital Control Winder Automatic Low Variable Speed Coil Winding machine Dual Winding Direction Winder

Description

instruction: controller is composed of professionals in the winding machine manufacturing industry development and design, at first, A beautiful, manual operation wound.After use and perfection, proving that the coiling machine has high precision winding, counting the correct, stable performance, wide application scope, advantages of simple operation, high efficiency, flexible adjustment, as long as the replacement of different coiling mode and number of turns for re-election can winding power transformers, small and medium-sized inductor, power relays, low cycle transformer coil and so on various level wound coil, is currently the more advanced winding equipment. technical indicators: Spindle speed: 10-700 RPM Winding rotating accuracy: 0.9 c (0.0025 turn) Winding number: the two groups Programmable winding circle number: 0.1-0.1 turns Winding direction: clockwise/counterclockwise Wire diameter range;0.01 1.5 mm Automatic startup: automatic/manual (0-1.5 V level change) Wiring way: by hand The machine input power: 40 w Maximum turning diameter: 80 mm Working power supply: AC220V plus or minus 5% 50 hz Host size: 160 mm (length) x 120 mm (width) x 100 mm (high) Weight: 1 kg Ambient temperature: - 20 °C - 40 °C attention: 1, if the spindle speed is too high locked-rotor stop, please reduce the spindle speed (reduced parameters of C01 number). 2, coiling machine, when the phone is switched on speed control knob must be reset back to zero. 3, after work must shut off the power switch or pull out the power plug. 4, in order to ensure the normal operation, the input ac voltage in the range of 220 v 10% 5, often keep the machine clean, do not place tools on the top of the winding machine. The shipment will be arranged in 2-4 working days( not including customized product), and takes about another 5-9 working days to reach you.
