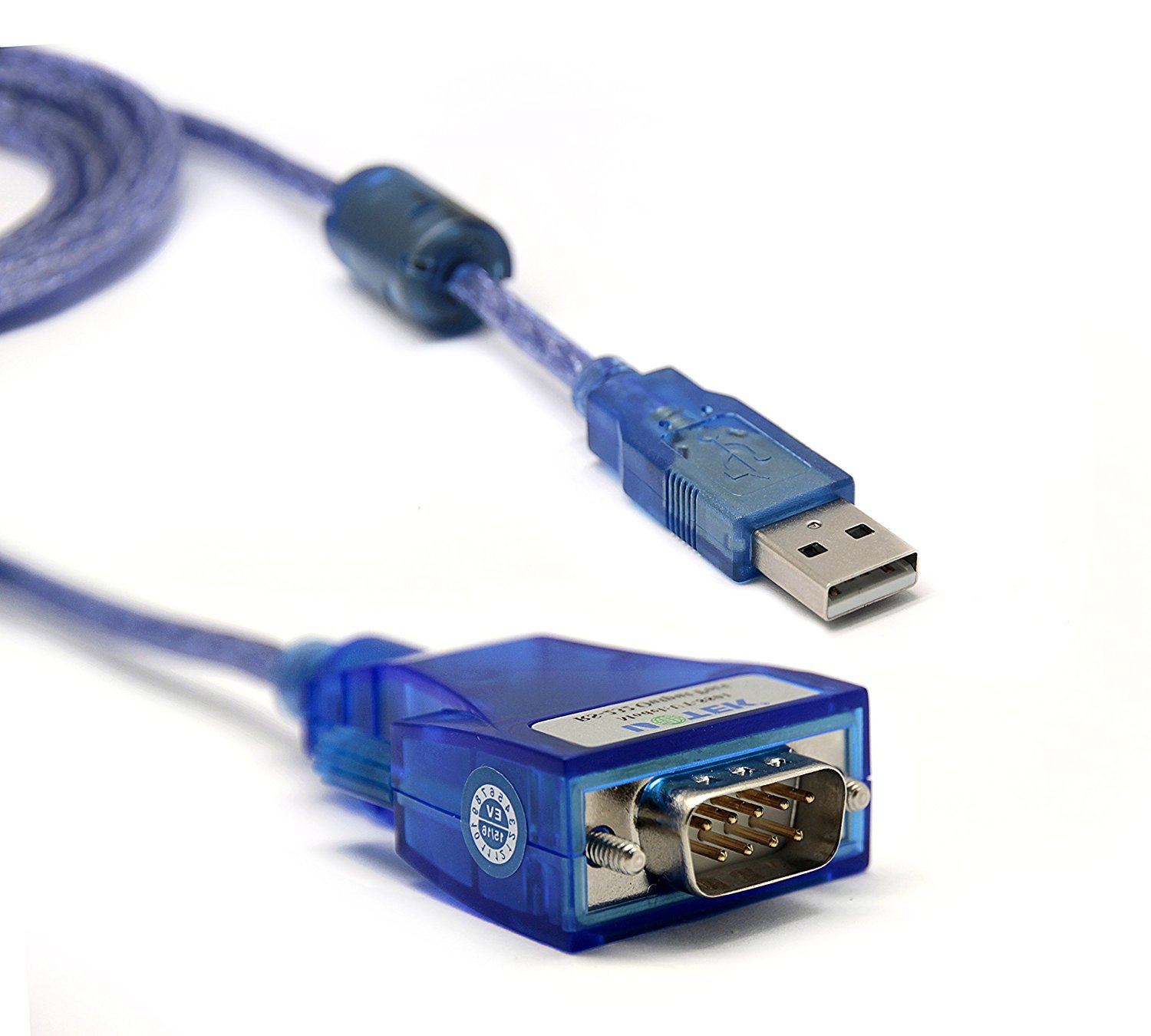

UTLINK UT-8801 0.5M Length USB to RS232 Serial Cable Adopts UK FTDI Chipset [Supports XP/7/8/10/CE/Mac/Linux] Port-powered

Description

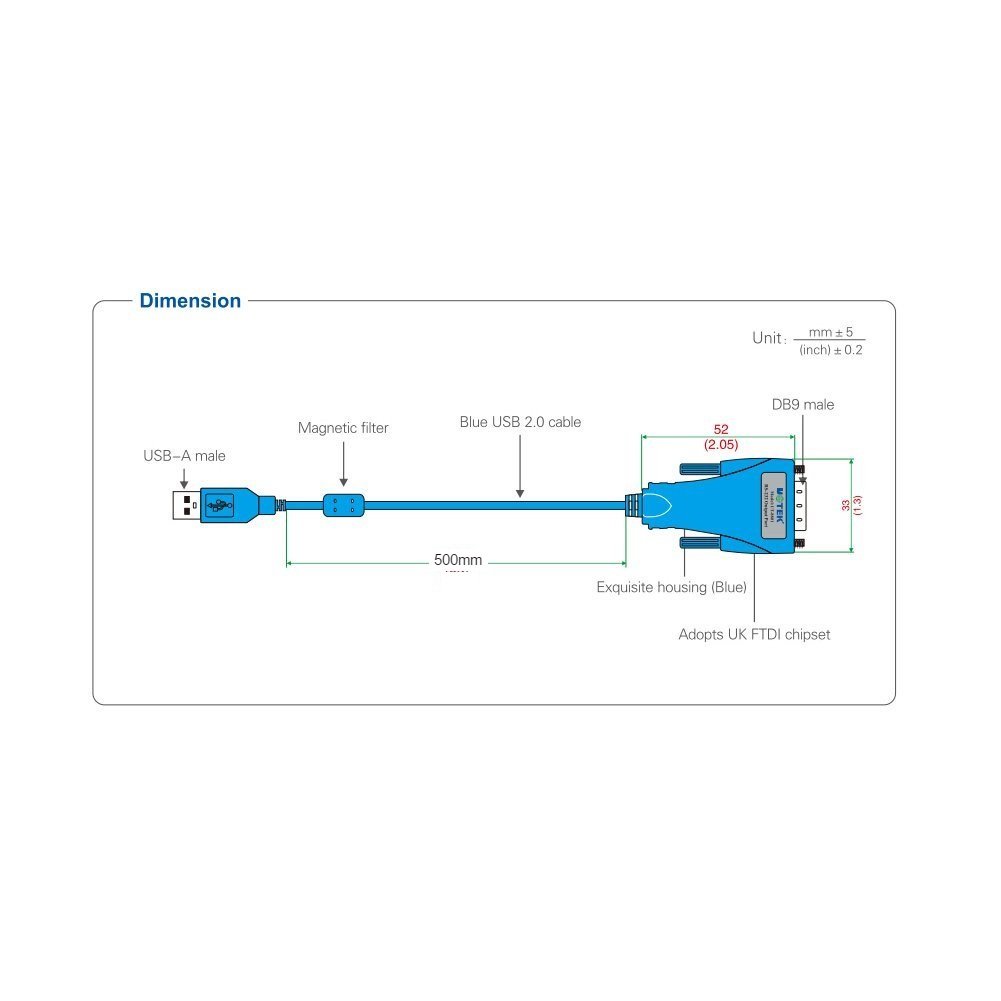

Standards: conforming to USBV1.0, 1.1 and 2.0 and EIA RS-232. USB signals: VCC, DATA+, DATA-, GND and FG.. RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI Working mode: asynchronous point-to-point. Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction. Baud rate: 300-921.6Kbps, automatic detection of the transmission rate of the serial interface signal. Transmission distance: 5 meters for RS-232 and less than 5 meters for USB. Interface protection:+/-15KV electrostatic protection. Interface forms: B interface female connector and DB9 male connector for USB. Signal indication: 9 indicator lights for Power (PWR), Send (TXD) and Receive (RXD). Transmission media: twisted-pair cable or shielded cable. Dimensions: 1530mm x 33mm x 16mm. Working environment:-25℃ to 70℃, relative humidity 5% to 95%. Windows95/98/2000/XP/Vista and IMAG are supported. Both BUS and external power supply are supported. Application fields: Factory automation system Distributed control system Other RS232/485/422 serial device wireless network LED INFO display equipments PLC control and management SCADA, measuring instruments and monitoring system CNC management Medical treatment/medication automation Building automation Check on work attendance/ Human resource management
