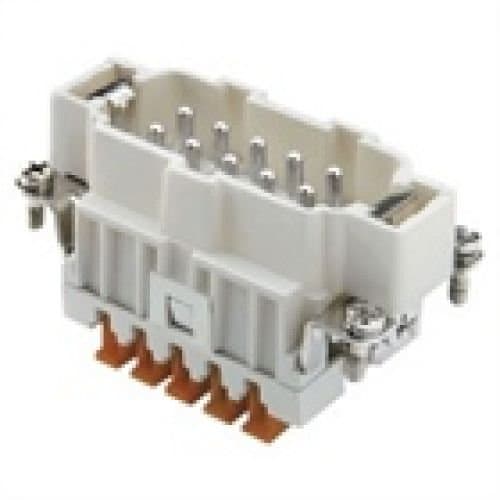

Ilme has Series The Socket CHS aus quetschs teckern, designed to maximize the connection of electrical connectors. The series stands out for easy mounting in - No matter if a bench or travel. The series CSH ist mit dem cage spring connector and conventional to elements of the constant evolution of the cse Series, locking the cage with spring is equipped with doors, and offers the following benefits.Easy to connect without tools, obvious saving of time compared to traditional cage ports or spring, Quick optischeunterscheidung the head contacts (not fixed), connect the conductor 2.5 mm? With or without sleeve terminal, high resistance to vibration, already wired.Each contact Camera is an element of block. When the stop button is pressed, the cage with spring-loaded clip closed and creates a reliable connection conductor. The firm element are distinguished in colour against the connector of the body and are not pressed downwards position. After a block elements this is fully integrated in the body of the use of contact activities.The connectors of the series CSH (snap on) provide a simple way, quick and high quality connection. If a new conductor must be resolved locking can, the elements with the aid of a normal screwdriver (0.5 mm x 3.5 mm) simply geloestwerden again. We need the screwdriver in lock be pressed the button of the opening introduced and easily downwards - already jumping the button the cage with spring-loaded clip upward in the open position.The range CSH fittings are suitable for various applications in a temperature range of -40 °C to + 125 °C, and available in the following sizes: Technical specifications: & # x2022; Available as 6p, 10P, 16P and 24p & # x2022; Screw
