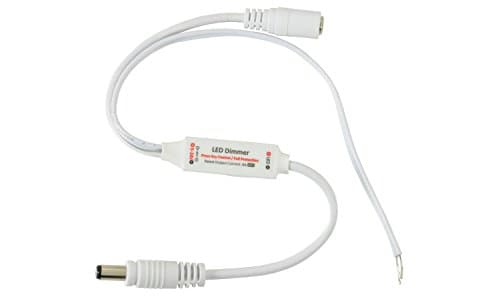

ILDC2 SINGLE COLOUR LED TAPE DIMMER

Description

Miniature DC in-line dimming controller for connection between a power supply and single colour LED tape. A simple 2-wire control lead can be connected to any momentary push switch to provide full on/off and dimming control. Suitable for 12V or 24V LED tapes Compatible with any momentary switch Short circuit and overheat protection Smooth PWM dimming control Controls On/off, dimming ± 256 levels Input 2.1mm DC socket Output 2.1mm DC plug Continuous current                        8A Current max. 16A PWM frequency                              1kHz Length 100mm Dimensions 42 x 13 x 5mm Weight 15g
