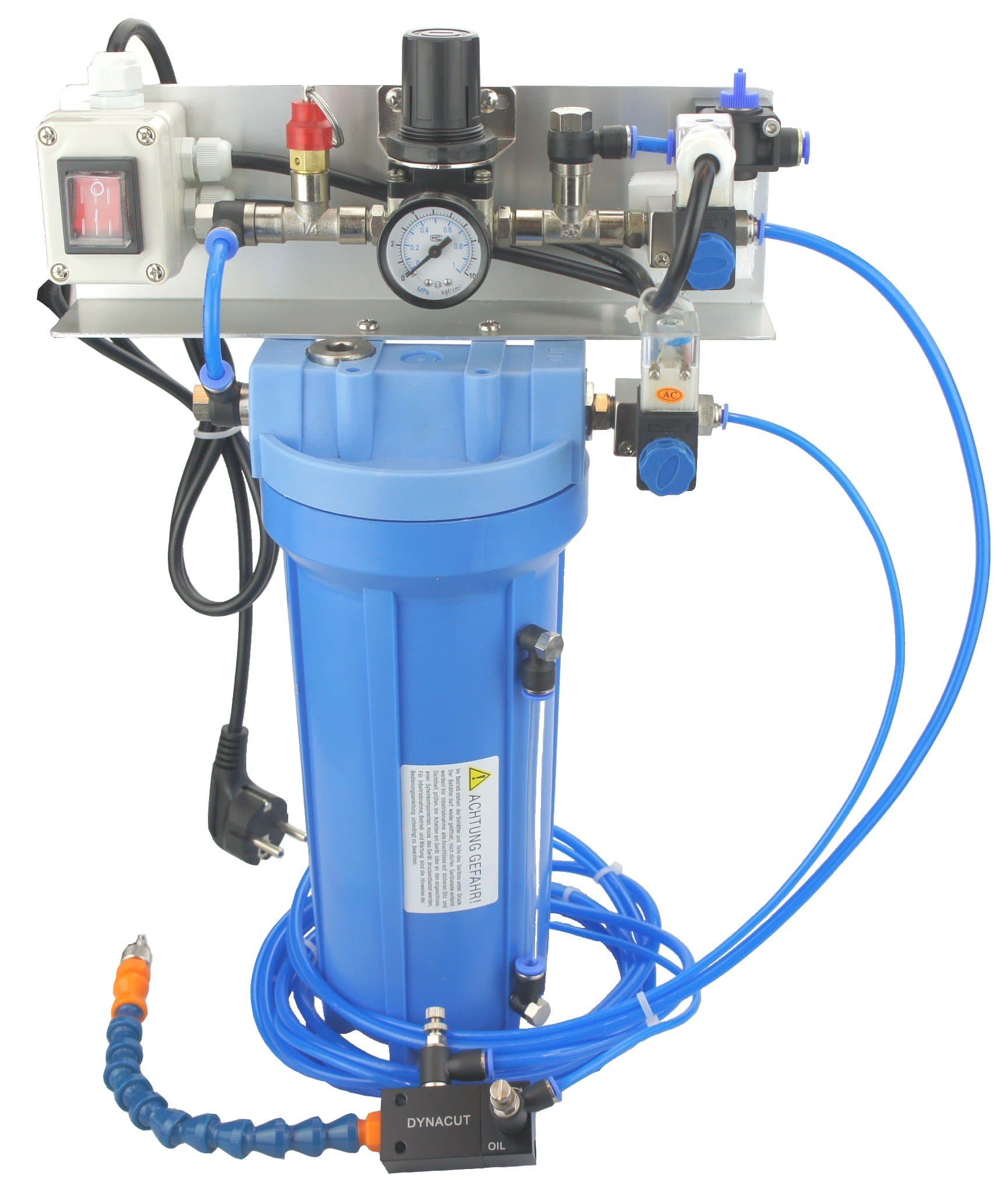

With our micro Max lubricating system MDE is a developed Low-Pressure system with coaxial spray nozzle for Nebelfreien coolant application from us. This system of the, coolant tank a pressure regulating valve as a base layer under other pressure between 1.5 and up to 2 bar. This way, is achieved that after switching on the compressed air supply to the lubricant and the blow air with various press independently be fed to the nozzle outlet and are finest coolant in teardrop shape in the air flow at the nozzle end pressed. The volume of the stream of air on the nozzle tip, making it the pressure by an adjustable needle valve on the nozzle on unit. The supply of the cooling medium also comes in a needle valve at the nozzle. With proper setting works the system, the container can be Nebelfrei. The switching the lubricant and air supply occurs during this system electric solenoid valves. The lubricating system so it can be Automatisiert, i.e. through a CNC control be switched on and off. The Great advantage of droplet cooling and less dilution is that fine micro drops are heavy so that it doesn't fall in the air throughout the room. Another advantage is that the air flow with the embedded droplets designed with the tool and workpiece can also be adjusted and you hardly notice it over spray (coolant loss). Thanks to the low air pressure is considerably less air pressure required. For Compressed Air Supply is sufficient a small compressor. This system can be used with all current cooling media the for that are suitable for Minimalmeng lubrication. Different viscosities are not a problem. Our cooling system can be used on all standard drilling Rotary milling and machines. Is suitable for the thanks to the aluminium editing and for cooling on CNC controlled Graviermaschinen
