Superwinch SX Series Winch Features

Upgrade your off-road adventure with an SX Series winch from Superwinch. Building upon the renowned foundation and engineering of the Tiger Shark series, SX Series winches are crafted for those who demand the best in power, performance, and reliability. They're available in 10,000 or 12,000 pound pulling power capacities. Whether navigating through challenging terrains or tackling extreme weather conditions, SX Series winches merge durability and innovation and are the go-to winch for any off-road adventuring.

Construction And Fitment

SX series winches offer superior reliability and ruggedness for trucks and adventure vehicles. Superwinch SX series winches feature a patented drum light and a 12' handheld wired remote remote with an integrated rechargeable lithium ion battery flashlight for effortless operation, day or night. SX Series winches from Superwinch offer:

12V DC power with 10,000 (SX10 models) or 12,000 (SX12 models) pound rated line pull
5.5 HP sealed motor (SX10 models) or 6.0 HP sealed motor (SX12 models)

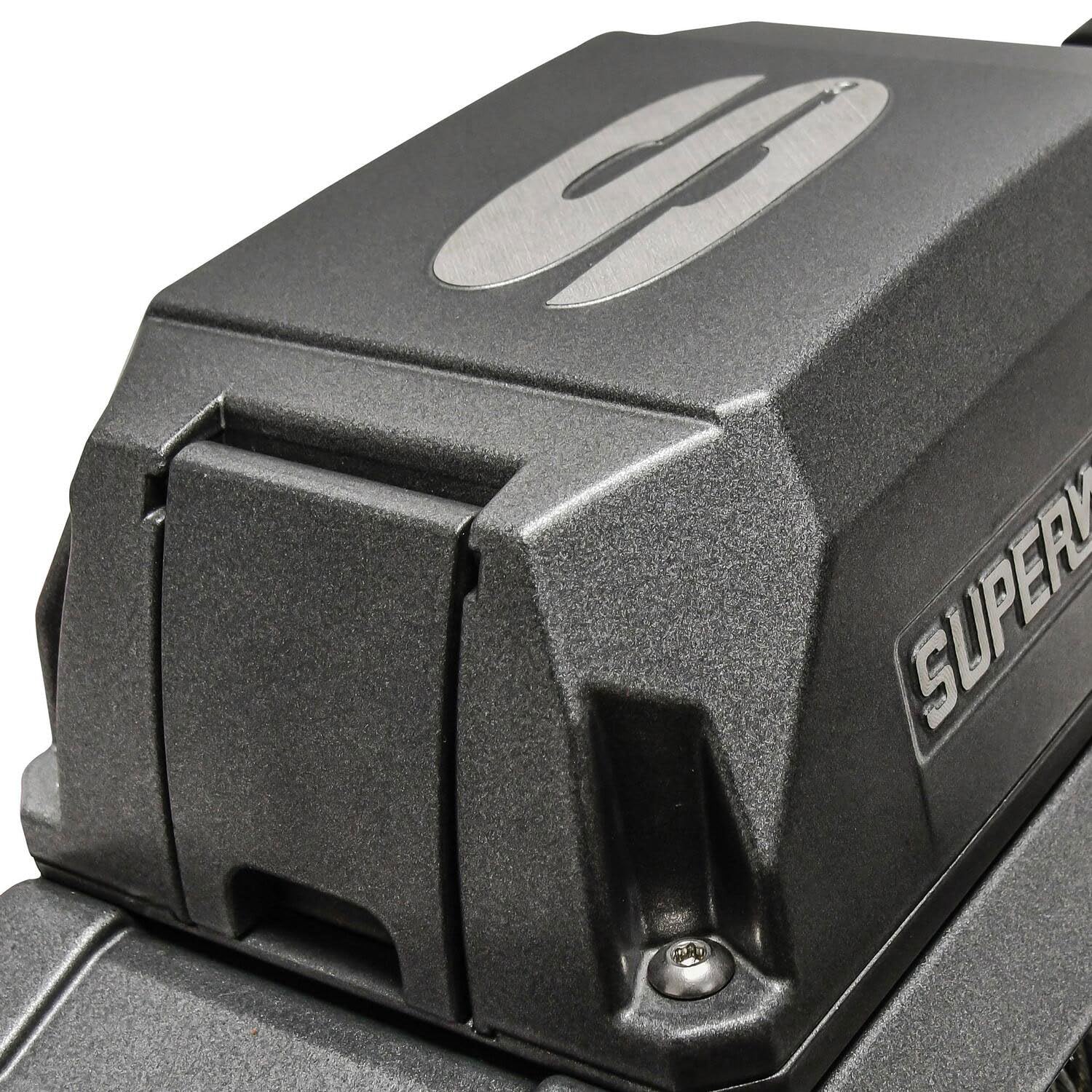

Relocatable die-cast aluminum control box
2.5 inch drum diameter

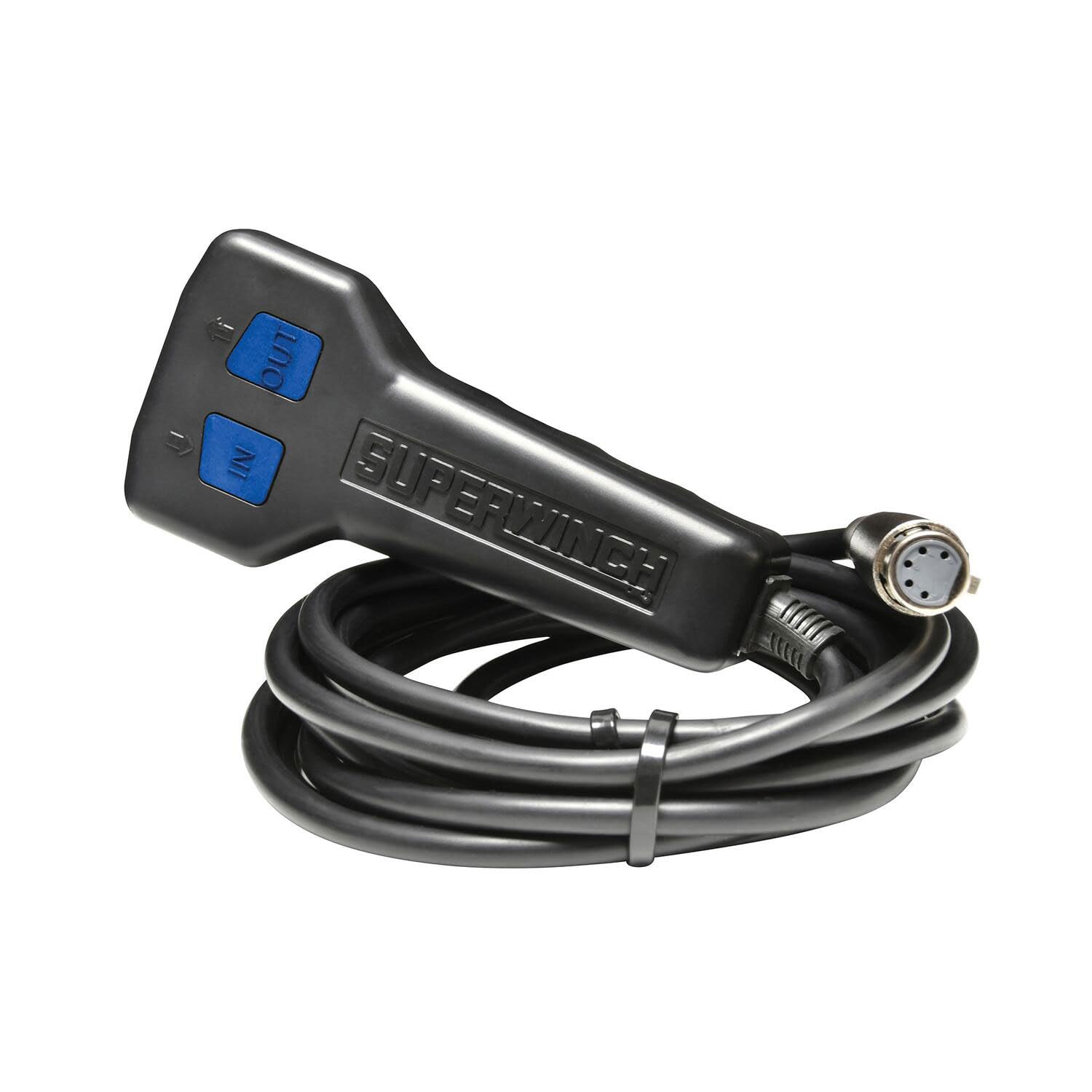

12 foot handheld wired remote features flashlight with rechargeable lithium ion battery
Ergonomic pull-and turn clutch handle
3-stage planetary gearing with a 218:1 ratio (SX10 models) or 231:1 ratio (SX12 models)

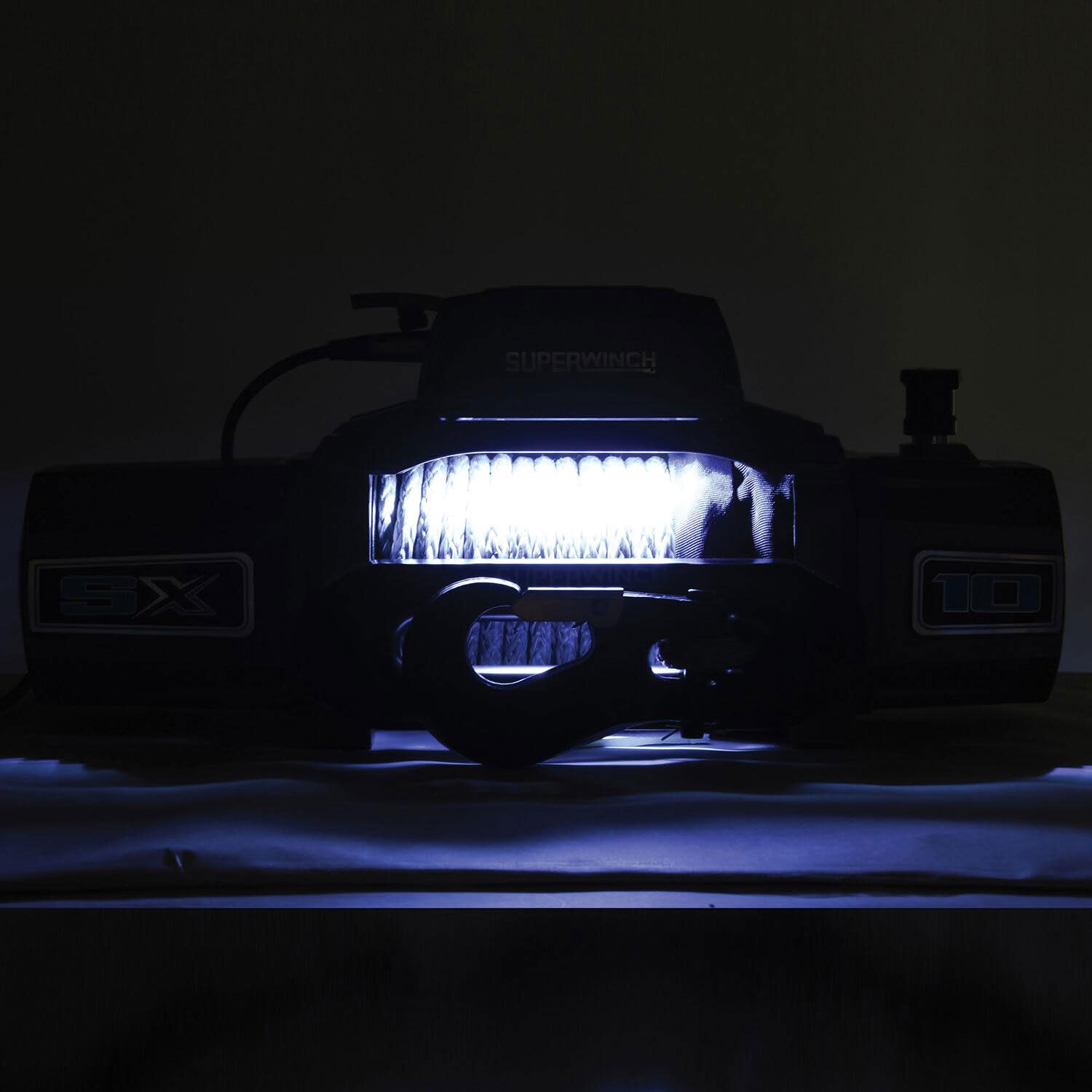

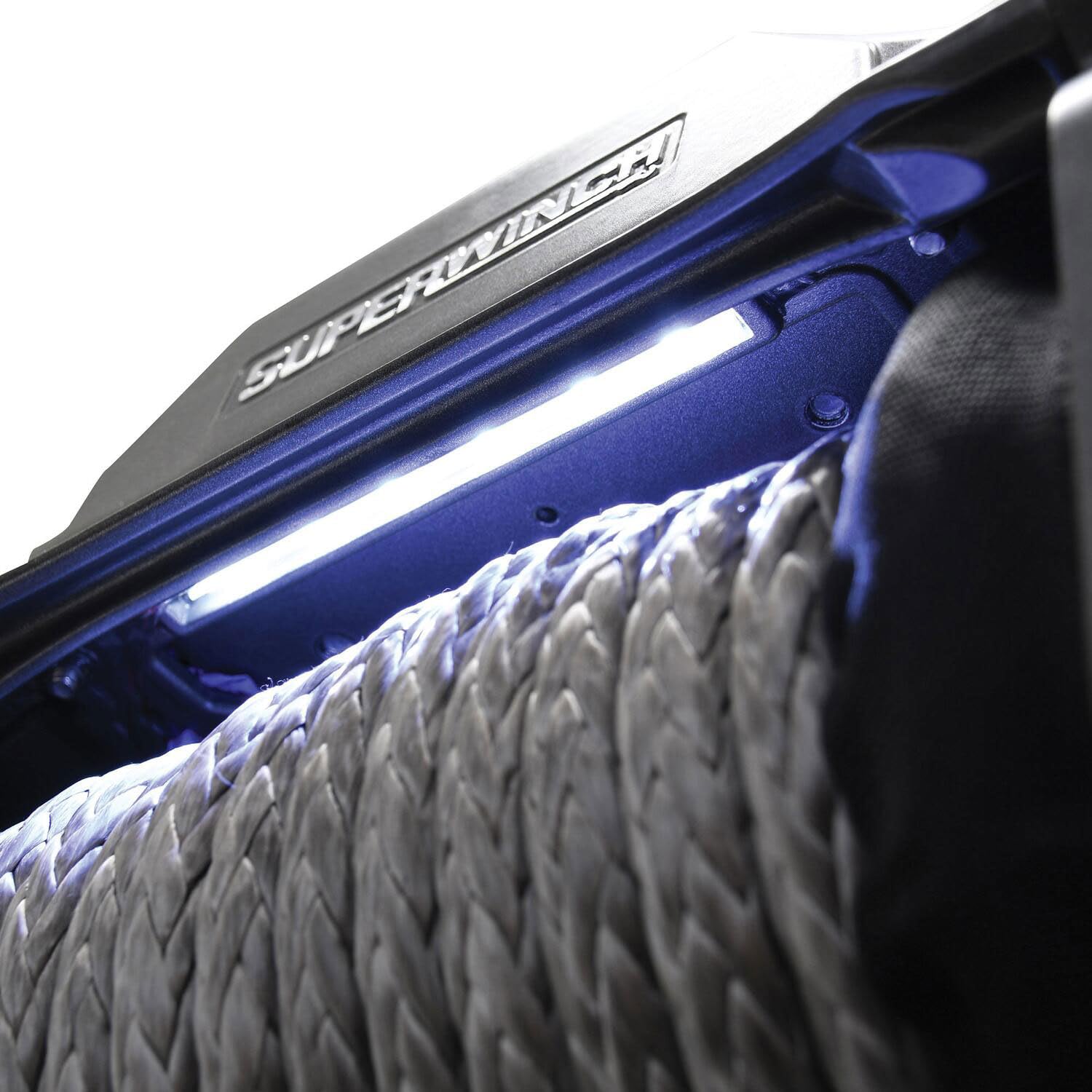

Patented drum light
3/8 inch x 85 foot steel wire rope (non-SR models) or 3/8 inch x 80 foot synthetic rope (SR models)

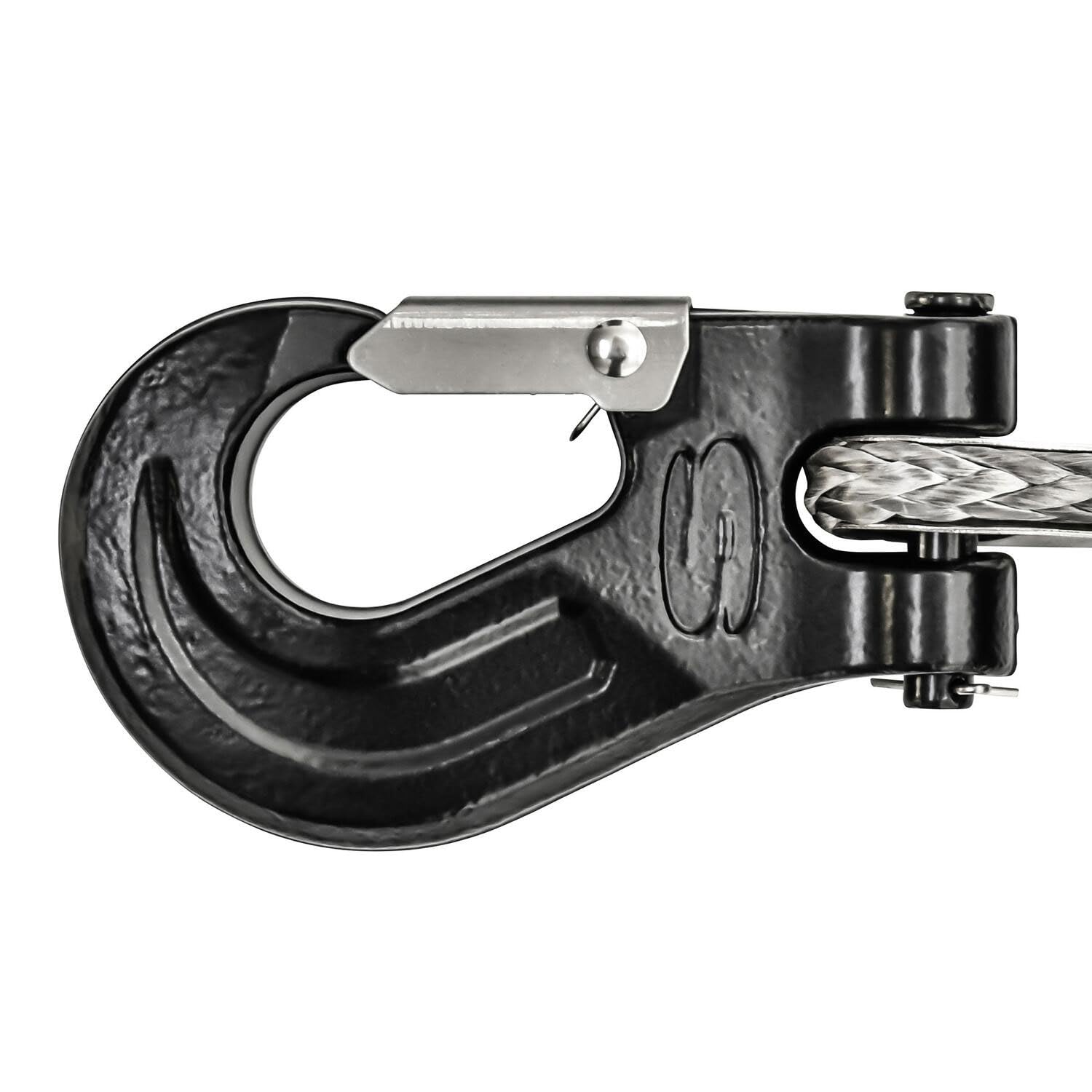

Heavy duty clevis winch hook
Aluminum hawse fairlead (SR models) or stainless steel 4-way roller fairlead (non-SR models)
100% full load holding automatic mechanical brake
IP68-rated waterproof and dustproof construction

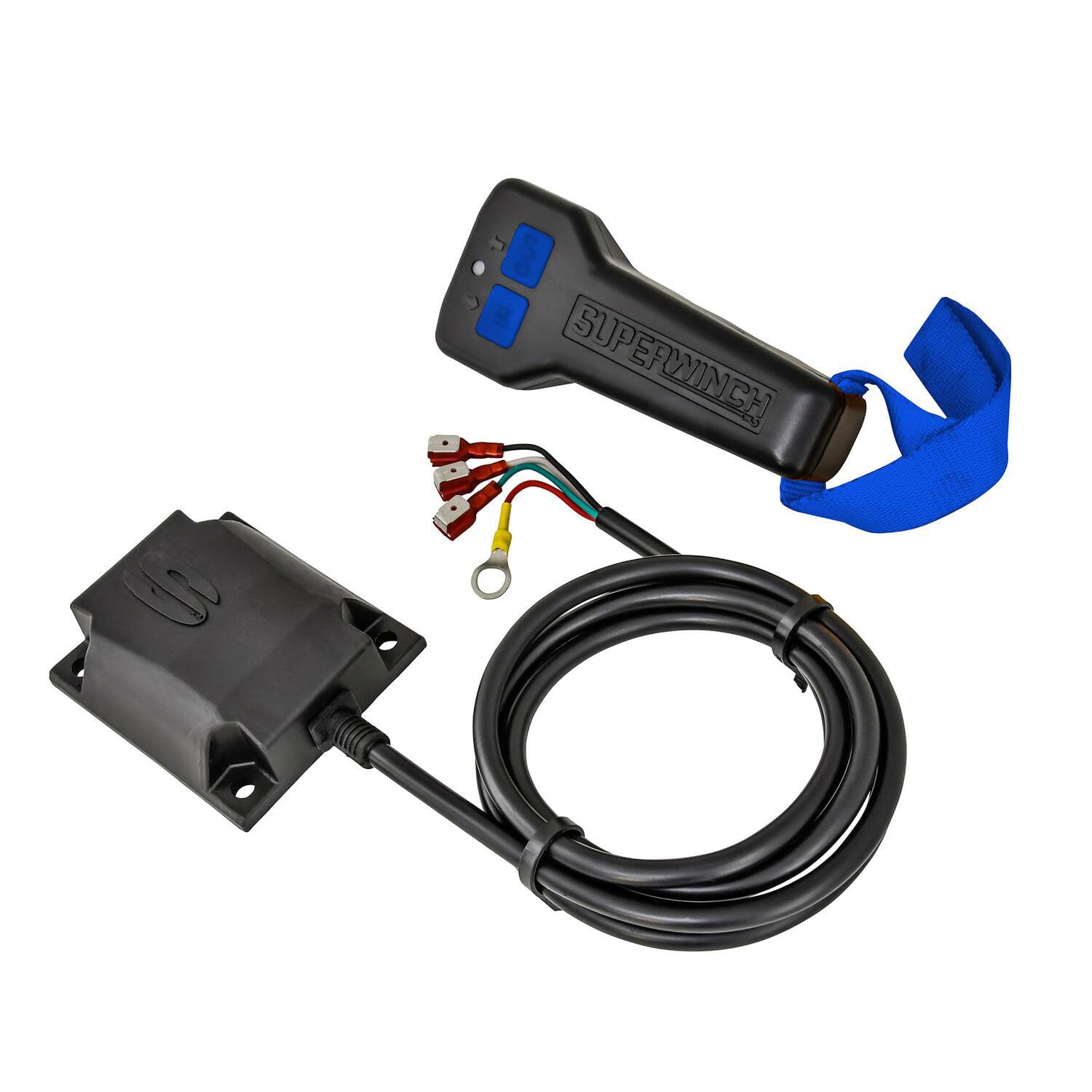

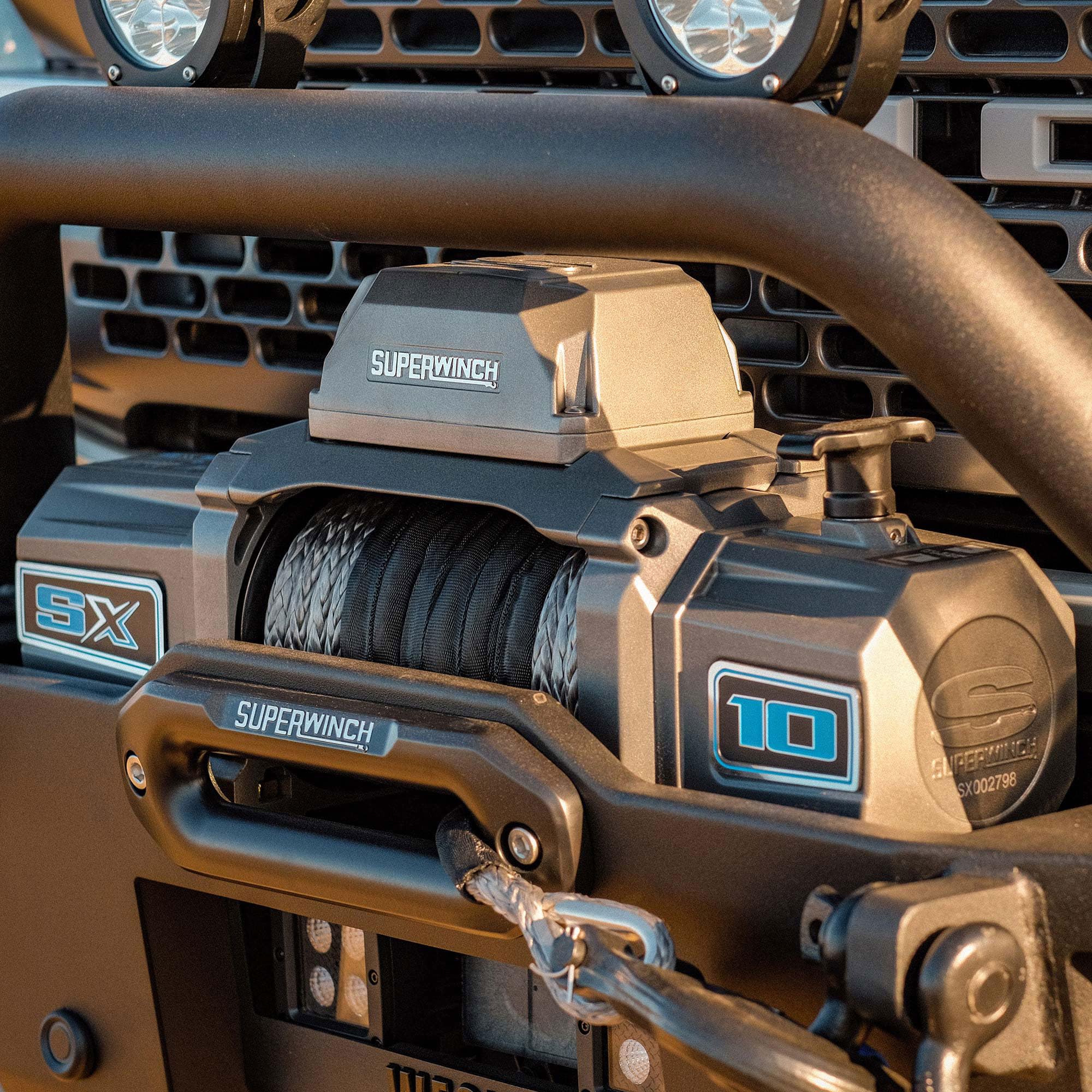

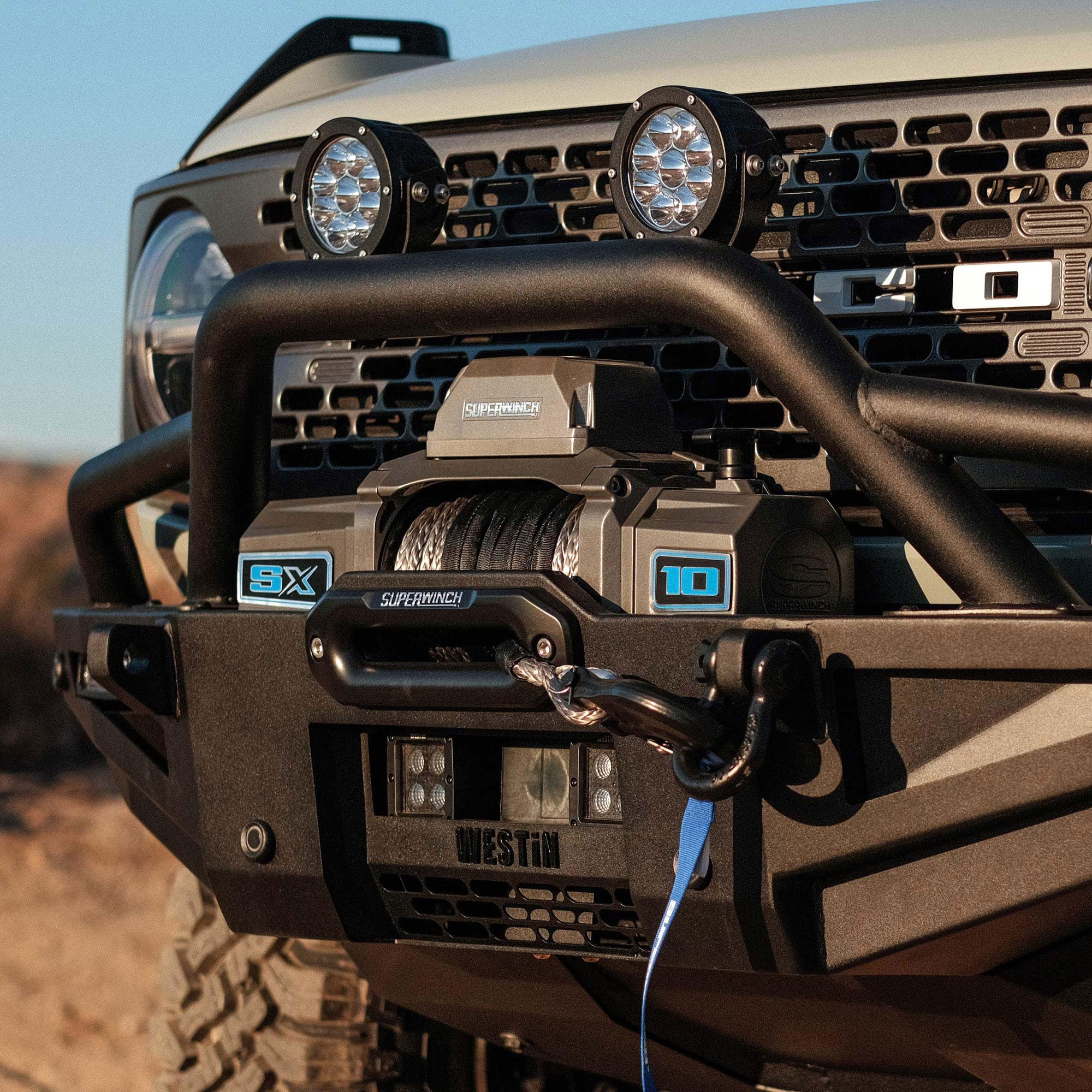

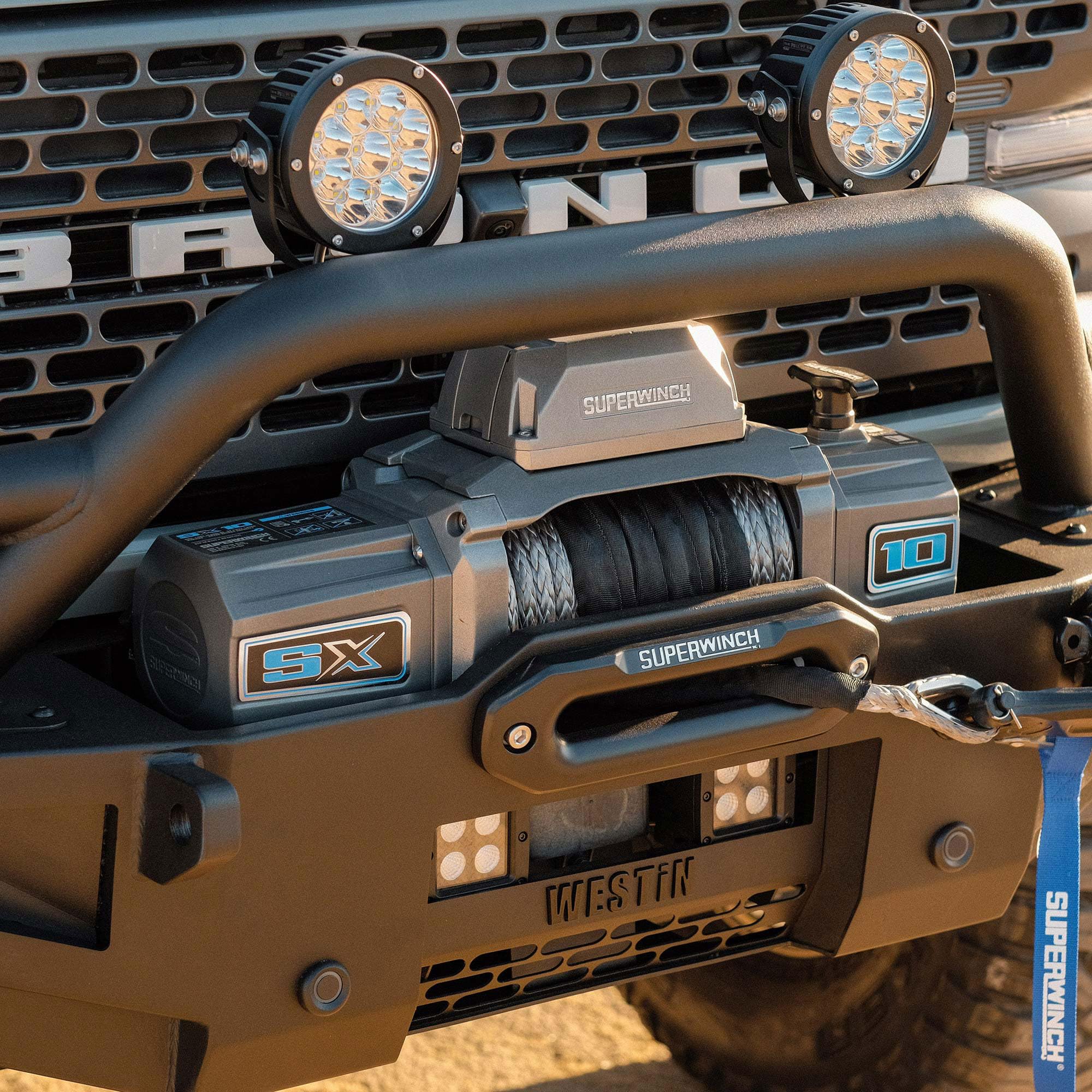

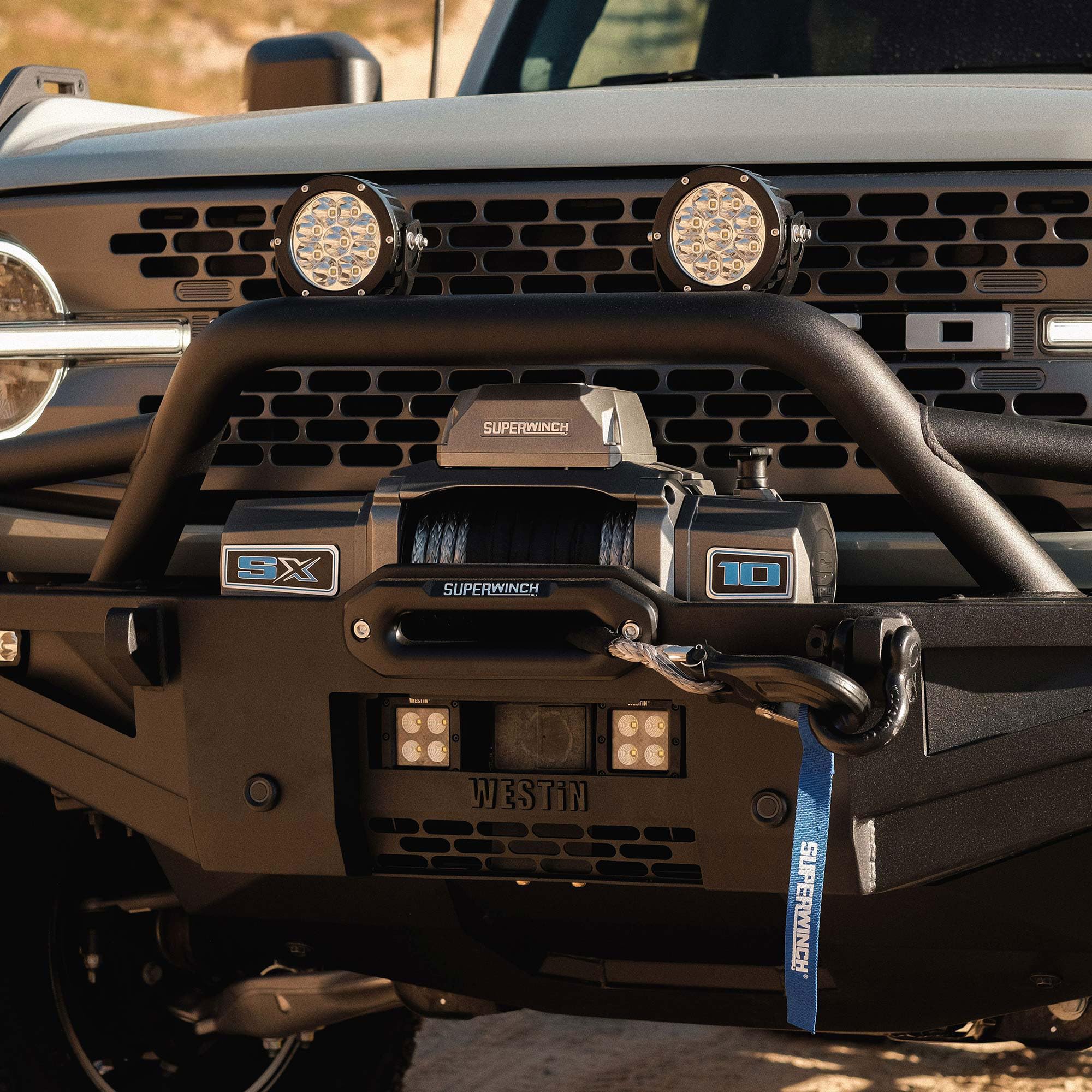

Synthetic rope models also include a wireless handheld remote. All SX winches have a heavy duty clevis winch hook and a 100% full load holding automatic mechanical brake. They also feature a relocatable die-cast aluminum control box and a metallic graphite powder coat finish for added corrosion protection. Installation is a DIY job - all SX winches are designed for simple installation on your winch mount or winch bumper.

Manufacturer	Superwinch
Brand	Superwinch
Model	SX10SR

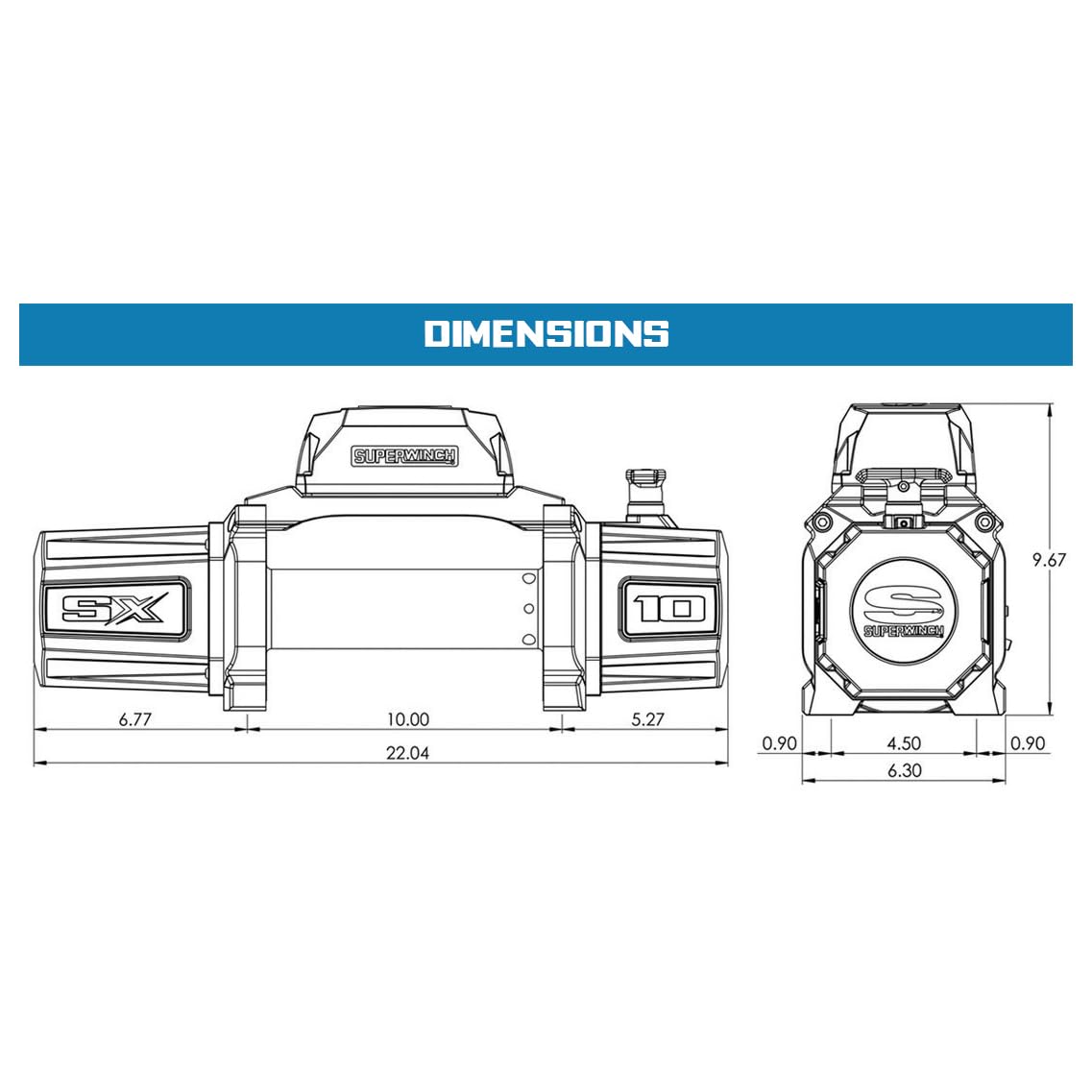

Product Dimensions	55.98 x 16 x 24.56 cm; 27.67 kg
Item model number	1710201
Exterior	Powdercoated
Manufacturer part number	1710201
Position	Rear
Bulb type	LED
Item Weight	27.7 kg

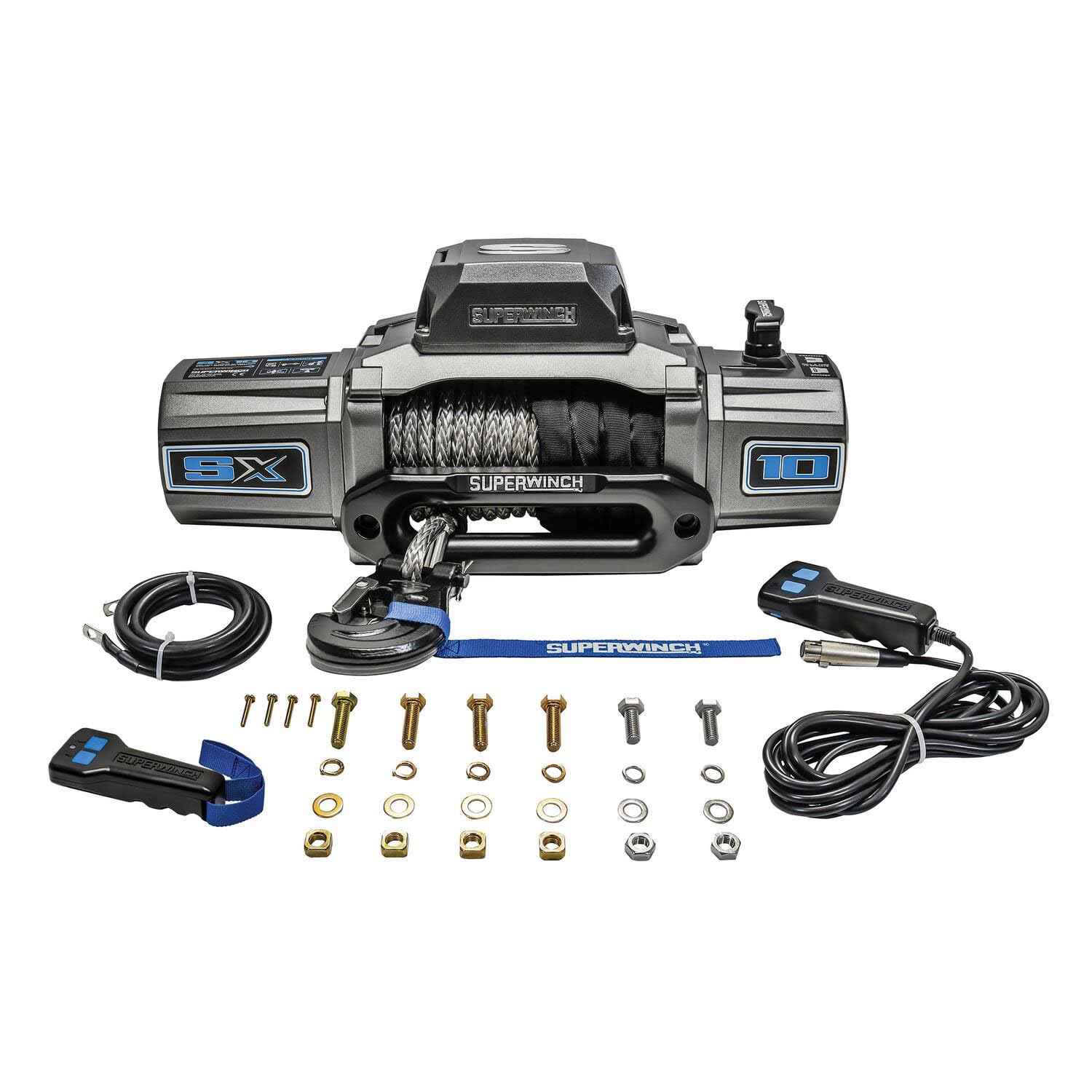

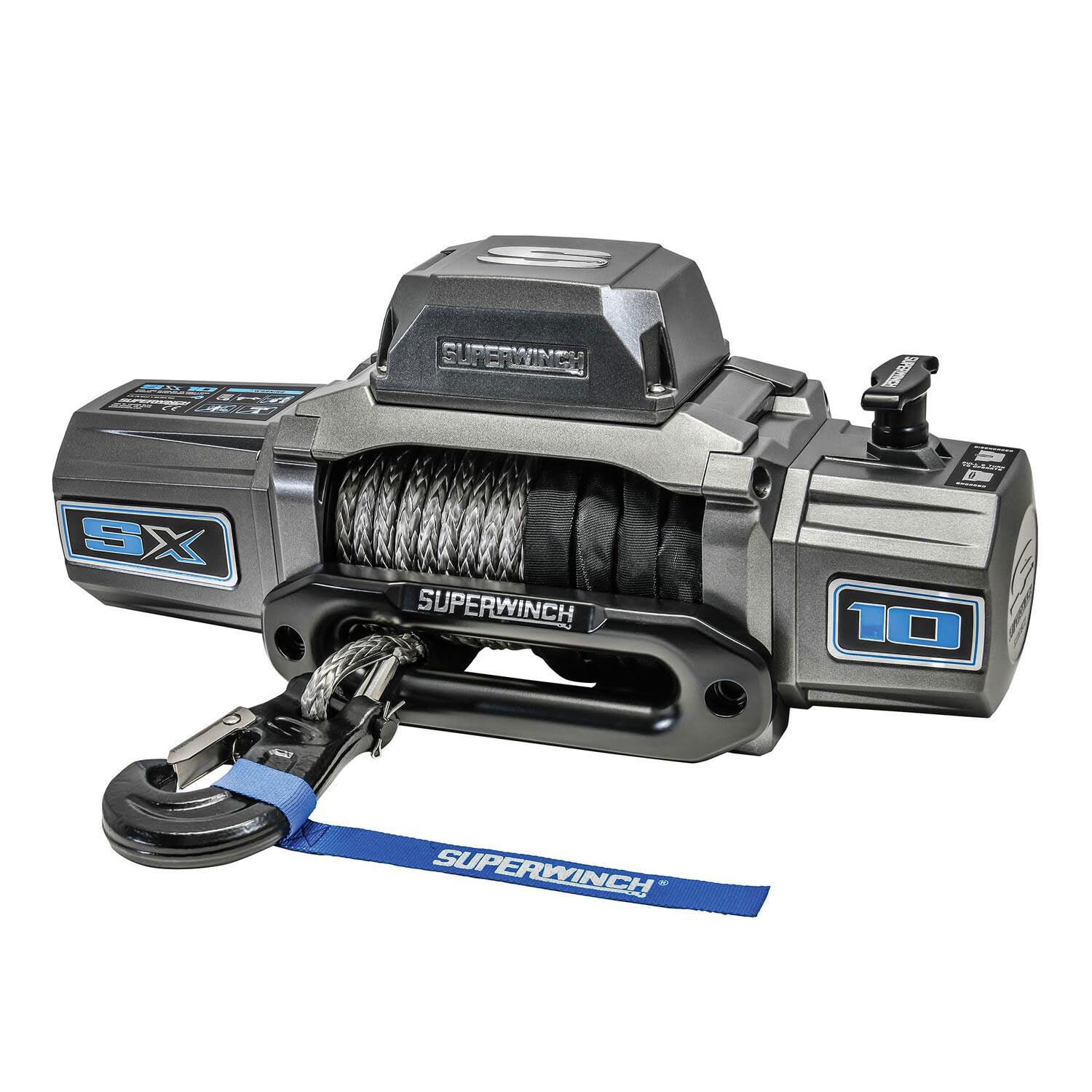

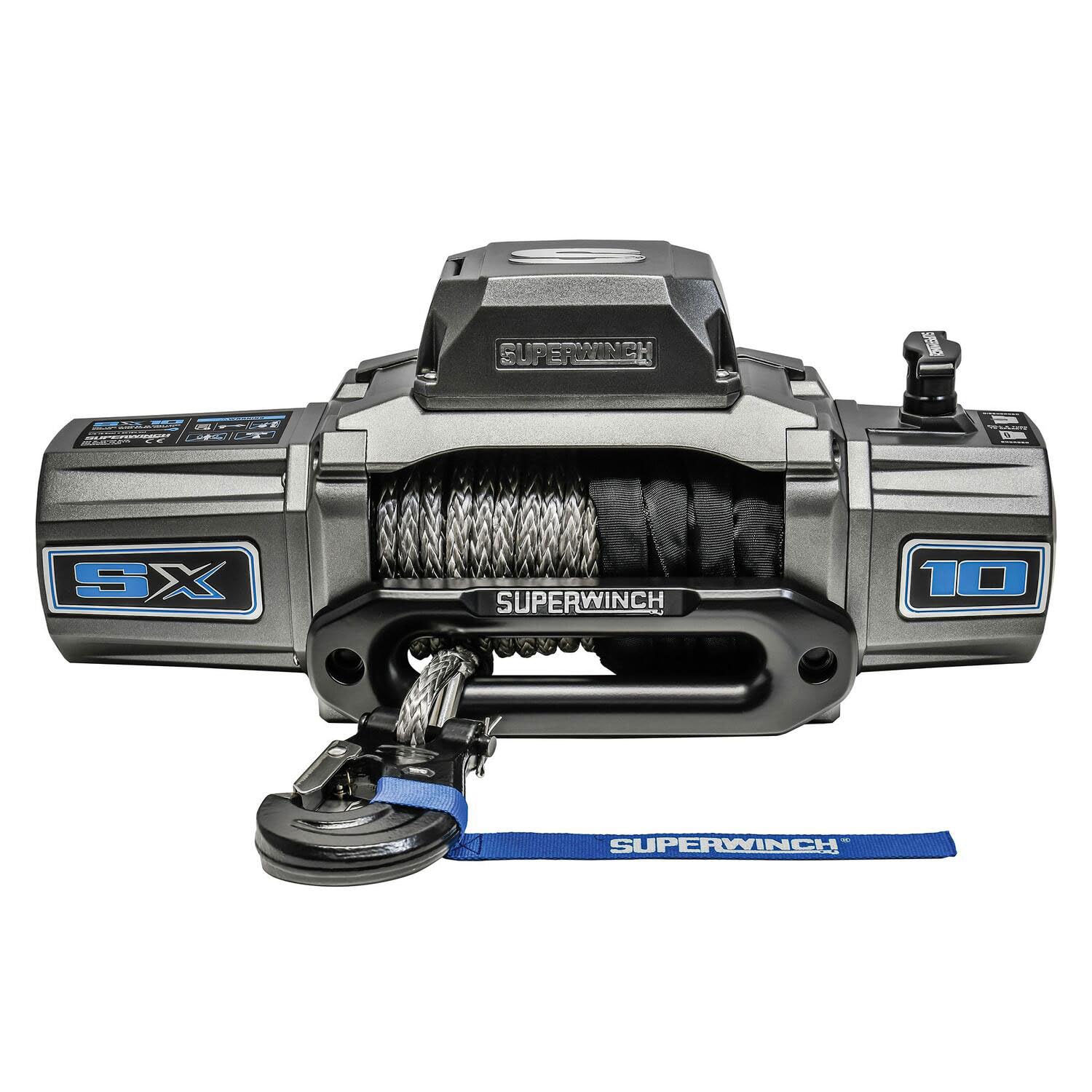

Superwinch 1710201 SX10SR 12V DC Winch 10,000 Lb/4,536 Kg Single Line Pull With Hawse Fairlead, 3/8in X 80ft Synthetic Rope, Corded Handheld And Wireless Remote
