Description
- The WeMos I2C Dual Motor Driver Module is designed to be able to drive up to two DC motors from your WeMos mini or mini Pro development boards (See HCWEMO0002). Using PWM the shield is capable of independently controlling the speed and direction of each connected motor with a maximum average of up to 1.2A (3.2A peak).
- The shield, together with its supplied headers (3 x 10 way supplied unsoldered), allows for it to be easily inserted and removed from the WeMos Mini. Control of the shield is via the WeMos mini's I2C interface which can be configured via solder jumpers to one of 4 I2C addresses (0x30 default). A library and example sketch is provided by WeMos to make controlling the shield from your own sketches as simple as possible.
- I2C Interface / Power Voltage Supply: VM = 15V MAX / Output Current: Iout = 1.2A (average) - 3.2A (peak) / Standby to save power / CW/CCW/Short Brake/Stop Motor Control Modes.
- More information can be found on our support forum. Link is provided on the product packaging.
- We buy these direct from Wemos so if purchasing from Hobby Components you're guaranteed an official product.

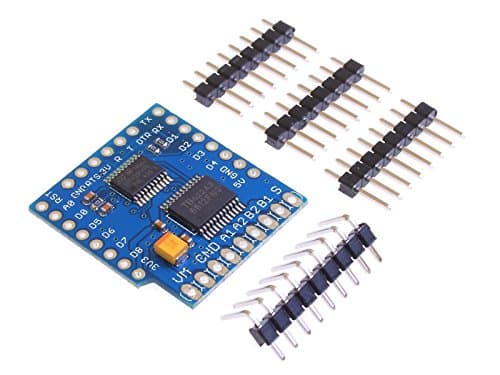

WemosD1 Mini Motor Drive Shield
