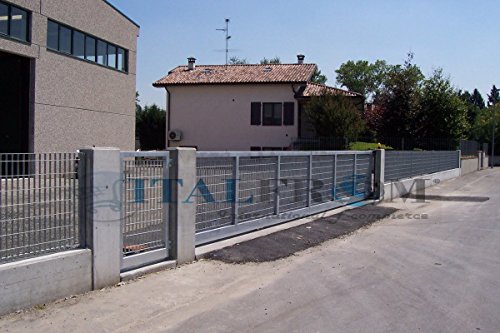

Fence Railing Grilled in Galvanised Iron; Mesh: 69 x 132 mm; Size: 1992 mm x 930 h

Description

The Fencing in trellis elettrosaldato Classic Model is made up of 25 x 2 mm Flat with vertical profiles jobs to a wheelbase of 69 mm. The connections are composed of round ø 4.5 mm, with wheelbase of 132 mm. The horizontal trim are made from 25 x 3.5 mm ASHLAR Flat, fold the ends in order to create a stand for floor mounting (Length folded mm 60 profile with loop 12 x 24 mm). These support profiles are welded to vertical profiles by elettrofusione. or the floor are constructed from flat 60 mm with a thickness of 7 mm, with appropriate cut-outs for the attachment of pannelli. or for fixing to their respective floor panels, there is a body composed of a strap to M10 nut and screw round head with a cup square carriage M10 x 25 All in stainless steel AISI 304. The panels and the fixtures are made from steel S 235 Jr (second Uni en 10025) the coating is performed via hot-dip galvanised Uni en iso 1461sul Our Shop you can find all the accessories for mulch too. Beware of imitations – buy products of quality 100% made in Italy We are available for svilupparvi free estimates according to your needs. So do not hesitate to contact us: info @ italfrom. com Tel 0825818686
